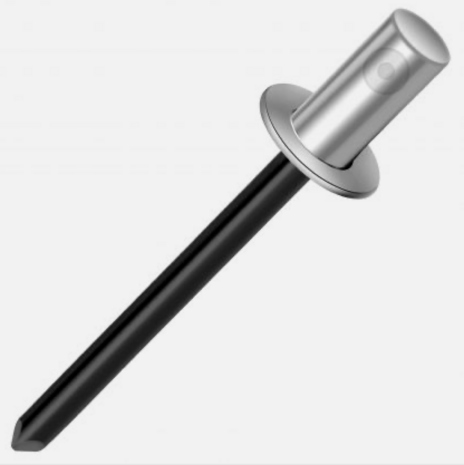

Water/gastight rivet aluminum/steel Ø 4,00 × 9,50 mm (100 pieces) Water/gastight rivet aluminum/steel Ø 4,00 × 9,50 mm (100 pieces)
Water/gastight rivet aluminum/steel Ø 4,00 × 9,50 mm (100 pieces) Water/gastight rivet aluminum/steel Ø 4,00 × 9,50 mm (100 pieces)
Water/gastight rivet aluminum/steel Ø 4,00 × 9,50 mm (100 pieces)
Product specifications: Type name WGD BK rivet Alu/Steel Ø4.00×9.50 (3.50-4.50)   Clamping range...

Shipping costs

€ 10,77

€ 7,99
Price per 100 pieces

Stock : 2

Quantity:
Order


Product specifications:


Type name

WGD BK rivet Alu/Steel Ø4.00×9.50 (3.50-4.50)

Clamping range

3,50 - 4,50 mm

Packaging unit

 100

Rivet type

Water/gas tight rivet

Head material

 Aluminium, AlMg 5,0

Head finish Polished

Polished

Pull pin material

 Steel

Pull pin finish

Phosphated

Certificate

 DIN & ISO 15973
Body type

Gastight, Closed, Waterproof

Head shape

Round head

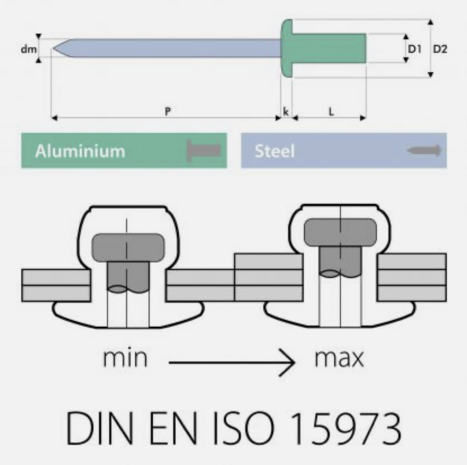

[D1] Diameter body min. 4,00 mm
[D1] Diameter body max. 4,00 mm
[L] Body length 9,50 mm

Clamping range min.

 3,50 mm

Clamping range max.

 4,50 mm

Drill hole min.

 4,10 mm

Drill hole max.

 4,10 mm
[D2] Head diameter 8,00 mm
[k] Head thickness  1,30 mm
[dm] Diameter of pulling pin 2,15 mm
[P] Length of pulling pin 27 mm

Tensile load

 2.200 N

Shear load

 1.600,00 N
